产品规格参数
-
过程压力
Max. 4 bar (relative)
应用领域

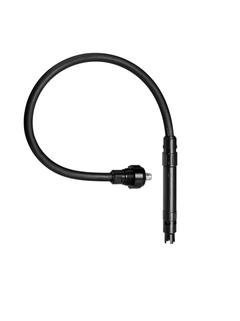

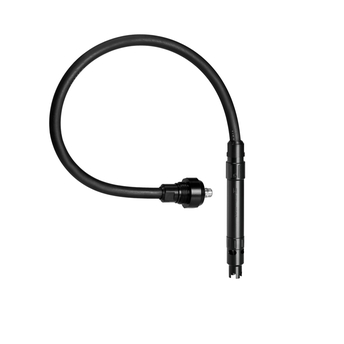

Dipfit CYA10 is a flexible submersible assembly for sensor immersion in auxiliary industrial processes, water and wastewater applications. It allows easy and flexible installation even in hazardous areas up to 10 meters immersion depth. Furthermore, provides shock and impact protection of the installed sensor and strain relief of the installed cable. The immersion assembly is compatible to all 12mm Memosens sensors with 120mm shaft length and without KCl supply.
CYA10 is a submersible assembly with an immersion depth of 10m for
Surface water monitoring in groundwater wells, rivers, and for brackish-/ seawater
Wastewater treatment
Utilities
Dipfit CYA10 is compatible with all digital 12mm Memosens sensors without liquid KCl supply and the following parameters
pH/ORP
Conductivity
Oxygen
优势
Easy toll-free installation into well shaft, rivers and basins due to different installation possibilities (fixed with flange conncection or in combination with Flexdip CYH112)
Time-saving maintenance of the measuring point due to a flexible assembly body and easy access thanks to the flexible body even at great immersion depths
Simple realization of measuring points for PG13,5 Sensors (“12 mm”) due to the space-saving design for easy installation in channels, basins, sewers or manholes
Great flexibility in applications due to realization of measuring points in sewers and covered treatment basins thanks to its suitability for hazardous areas
成功案例
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
-
《技术资料》（TI）
TI Dipfit CYA10
Submersible assembly for Wastewater, Surface-Water and Industrial
applicationsEN ZH 09/12/2024语言:
英语
版本:
09/12/2024
文件大小:
536.6 KB
文件名:
TI01810CEN_0124-00.pdf
-
-
-
《操作手册》（BA）
BA 71638868
浸入式安装支架，适用于实验室测量
EN ZH 23/10/2024语言:
中文
版本:
23/10/2024
文件大小:
1.8 MB
文件名:
BA02379CZH_0124-00.pdf
-
-
-
《操作手册》（BA）
BA Dipfit CYA10
浸入式安装支架，用于工艺用水测量
EN ZH 23/10/2024语言:
中文
版本:
23/10/2024
文件大小:
1.9 MB
文件名:
BA02378CZH_0124-00.pdf
-
-
-
《安装指南》（EA）
EA Kit for Dipfit CYA10
Spare parts kit for the immersion assembly CYA10
EN ZH 21/11/2024语言:
英语
版本:
21/11/2024
文件大小:
1.1 MB
文件名:
EA01511CEN_0124-00.pdf
-
-
-
制造商声明
Product family: , Assemblies
Product root: CYA10-
Declaration number: HE_01939_01.24
Manufacturer specification: PEDEN ZH 23/08/2024语言:
英语
版本:
23/08/2024
文件大小:
287.5 KB
文件名:
HE_01939_01.24 CYA10_DGRL.pdf
-
