Tổng quan về thông số kỹ thuật
Input
One channel transmitter for Memosens and analog (pH, ORP, conductivity)
Output / communication
4 to 20 mA, HART (optional), additional second output possible; HART communication, also later activatable
Ingress protection
Field housing: IP66/67 (IEC 60529) NEMA 4X (UL 50E) DIN-rail housing: IP20
Phạm vi ứng dụng
Liquiline CM42B provides precise and reliable measurement of pH, ORP, conductivity or oxygen in demanding process applications. Benefit from its intuitive local operation and configuration and use its Bluetooth interface and the SmartBlue app to get a detailed measuring point overview on your mobile devices. The Bluetooth communication is secured by a unique concept. No need to worry about intruders. Different device versions allow for flexible adaptation to all installation requirements.
The Liquiline CM42B transmitter is suitable for demanding process applications in the following industries
With its international explosion protection approvals, such as IECEx, ATEX, C/US IS Cl. I div 1 and CHN-Ex, the transmitter is suitable for hazardous areas.
Lợi ích
Comfortable operation and configuration: The intuitive operating concept makes commissioning and configuration on-site easy and fast. Bluetooth connection and the SmartBlue app provide an overview of the measuring point on your smartphone or tablet.
Unique security : The Bluetooth connection features a unique security concept that prevents intrusion and enables sophisticated role management of the operating staff. You profit from external and internal security.
Suitable for all process environments: The transmitter is available as stainless steel, plastic or DIN-rail version. Simply select the suitable version to integrate it into a skid, use it in hygienic environments or apply it in hazardous areas.
Increased process safety and uptime: Memosens technology provides you with safe, digital data transmission and high availability of measured values. Plug & play of pre-calibrated sensors reduces process downtime for calibration.
Seamless system integration: Liquiline CM42B offers HCF-certified HART communication which makes integration into your process control system easy and secure.
Lựa chọn Extended
Sản phẩm cao cấp
Chức năng cao và tiện lợi
Công nghệ vượt trội
Đơn giản
©Endress+Hauser
Sản phẩm đơn giản
Dễ lựa chọn, cài đặt và vận hành
Công nghệ vượt trội
Đơn giản
Sản phẩm tiêu chuẩn
Đáng tin cậy, mạnh mẽ và ít bảo trì
Công nghệ vượt trội
Đơn giản
Sản phẩm cao cấp
Chức năng cao và tiện lợi
Công nghệ vượt trội
Đơn giản
Sản phẩm chuyên dụng
Dành cho các ứng dụng đòi hỏi cao
Công nghệ vượt trội
Đơn giản
Lựa chọn FLEX
Công nghệ vượt trội
Đơn giản
Lựa chọn Fundamental
Đáp ứng nhu cầu đo lường cơ bản
Công nghệ vượt trội
Đơn giản
Lựa chọn Lean
Xử lý dễ dàng các quy trình cốt lõi
Công nghệ vượt trội
Đơn giản
Lựa chọn Extended
Tối ưu hóa quy trình bằng công nghệ tiên tiến
Công nghệ vượt trội
Đơn giản
Lựa chọn Xpert
Làm chủ các ứng dụng khó khăn nhất
Công nghệ vượt trội
Đơn giản
Loading alternative products
Câu chuyện thành công
Pure high quality beer and clean wastewater
Discover how Heineken meets all regulations to protect the brazilian environment with the Viomax CAS51D digital nitrate or SAC sensor from Endress+Hauser.
Đọc toàn bộ câu chuyện
Smart vertical farming in big cities
Intuitive pH and conductivity measurement in smart vertical farming plants to meet quality requirements and ensure comprehensive
monitoring of processes.
Đọc toàn bộ câu chuyện
Long-lasting performance during whey processing
With the help of the Memosens CPS77E sensor a safe monitoring of the pH values is possible, which must be guaranteed with the high requirements in the food industry.
Đọc toàn bộ câu chuyện
Application
Chemical processes, pharmaceuticals industry, food and beverage technology, applications in hazardous areas
Characteristic
Liquiline CM42B is a modular two-wire transmitter for all areas of process engineering
Measuring principle
Memosens und analog Parameter; DIN-rail device Memosens only
Design
Depending on the ordered version, Liquiline CM42B has one or two analog current outputs or it can be connected to fieldbus with HART protocol
Material

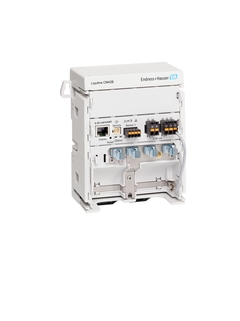

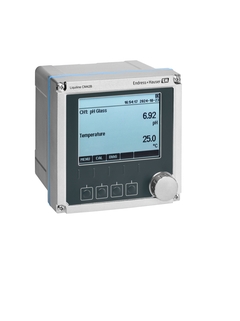

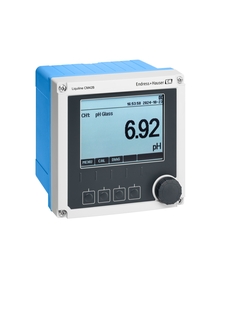

Plastic or stainless steel housing with EPDM sealings or DIN-rail housing for cabinet installations with separate display
Dimension
Plastic/stainless steel housing: 148 x 155 x 152 mm; 5.83 x 6.10 x 6.00 inches DIN-rail housing: 139.5 x 163.7 x 75.1 mm; 5.49 x 6.44 x 2.96 inches"
Temperature sensor
Applicable sensors Pt100, Pt1000, NTC 30K
Ex certification
ATEX, IECEx, C/US, CHN-Ex
Ingress protection
Field housing: IP66/67 (IEC 60529) NEMA 4X (UL 50E) DIN-rail housing: IP20
Input
One channel transmitter for Memosens and analog (pH, ORP, conductivity)
Output / communication
4 to 20 mA, HART (optional), additional second output possible; HART communication, also later activatable
Application
Chemical processes, pharmaceuticals industry, food and beverage technology, applications in hazardous areas
Characteristic
Liquiline CM42B is a modular two-wire transmitter for all areas of process engineering
Measuring principle
Memosens und analog Parameter; DIN-rail device Memosens only
Design
Depending on the ordered version, Liquiline CM42B has one or two analog current outputs or it can be connected to fieldbus with HART protocol
Material
Plastic or stainless steel housing with EPDM sealings or DIN-rail housing for cabinet installations with separate display
Dimension
Plastic/stainless steel housing: 148 x 155 x 152 mm; 5.83 x 6.10 x 6.00 inches DIN-rail housing: 139.5 x 163.7 x 75.1 mm; 5.49 x 6.44 x 2.96 inches
Temperature sensor
Applicable sensors Pt100, Pt1000, NTC 30K
Ex certification
ATEX, IECEx, C/US, CHN-Ex
Ingress protection
Field housing: IP66/67 (IEC 60529) NEMA 4X (UL 50E) DIN-rail housing: IP20
Input
One channel transmitter for Memosens and analog (pH, ORP, conductivity)
Output / communication
4 to 20 mA, HART (optional), additional second output possible; HART communication, also later activatable
Application
Chemical processes, pharmaceuticals industry, food and beverage technology, applications in hazardous areas
Characteristic
Liquiline CM42B is a modular two-wire transmitter for all areas of process engineering
Measuring principle
Memosens und analog Parameter; DIN-rail device Memosens only
Design
Depending on the ordered version, Liquiline CM42B has one or two analog current outputs or it can be connected to fieldbus with HART protocol
Material
Plastic or stainless steel housing with EPDM sealings or DIN-rail housing for cabinet installations with separate display
Dimension
Plastic/stainless steel housing: 148 x 155 x 152 mm; 5.83 x 6.10 x 6.00 inches DIN-rail housing: 139.5 x 163.7 x 75.1 mm; 5.49 x 6.44 x 2.96 inches
Temperature sensor
Applicable sensors Pt100, Pt1000, NTC 30K
Ex certification
ATEX, IECEx, C/US, CHN-Ex
Ingress protection
Field housing: IP66/67 (IEC 60529) NEMA 4X (UL 50E) DIN-rail housing: IP20
Input
One channel transmitter for Memosens and analog (pH, ORP, conductivity)
Output / communication
4 to 20 mA, HART (optional), additional second output possible; HART communication, also later activatable
Measuring principle
Amperometric oxygen measurement
Application
Chemical processes, pharmaceuticals industry, food and beverage technology, applications in hazardous areas
Characteristic
Liquiline CM42B is a modular two-wire transmitter for all areas of process engineering
Measuring principle
Memosens und analog Parameter; DIN-rail device Memosens only
Design
Depending on the ordered version, Liquiline CM42B has one or two analog current outputs or it can be connected to fieldbus with HART protocol
Material
Plastic or stainless steel housing with EPDM sealings or DIN-rail housing for cabinet installations with separate display
Dimension
Plastic/stainless steel housing: 148 x 155 x 152 mm; 5.83 x 6.10 x 6.00 inches DIN-rail housing: 139.5 x 163.7 x 75.1 mm; 5.49 x 6.44 x 2.96 inches
Temperature sensor
Applicable sensors Pt100, Pt1000, NTC 30K
Ex certification
ATEX, IECEx, C/US, CHN-Ex
Ingress protection
Field housing: IP66/67 (IEC 60529) NEMA 4X (UL 50E) DIN-rail housing: IP20
Input
One channel transmitter for Memosens and analog (pH, ORP, conductivity)
Output / communication
4 to 20 mA, HART (optional), additional second output possible; HART communication, also later activatable
