Non-invasive temperature assembly TM611

iTHERM SurfaceLine TM611
Surface thermometer

Non-invasive RTD/TC thermometer with high measurement performance for demanding applications

TM611
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Non-invasive temperature sensor for industrial plants
  • F
  • L
  • E
  • X
©Endress+Hauser

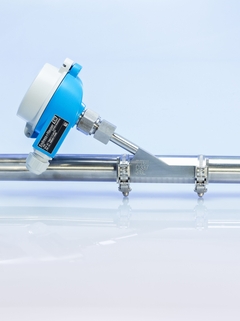

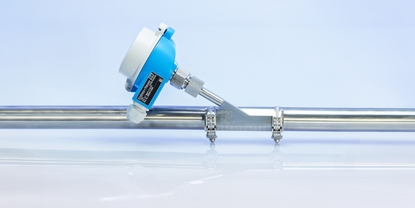

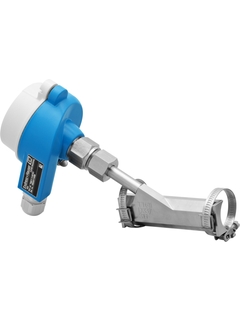

Version with aluminium terminal head TA30A, 20° angle, DN25, 1 ", outside pipe ⌀ 33.7 mm

Tm611 aluminium mounted on pipe
  • F
  • L
  • E
  • X
©Endress+Hauser

Mounting on the outer pipe wall: elimination of leakages, process contamination, flow disturbance

Explosion-proof non-invasive temperature sensor
  • F
  • L
  • E
  • X
©Endress+Hauser

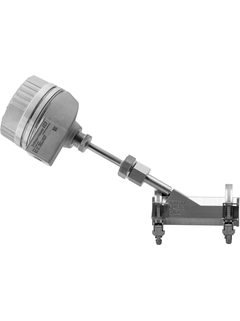

Version with explosion-proof terminal head TA30H, 20° angle, DN25, 1 ", outside pipe ⌀ 33.7 mm

Hygienic non-invasive thermometer
  • F
  • L
  • E
  • X
©Endress+Hauser

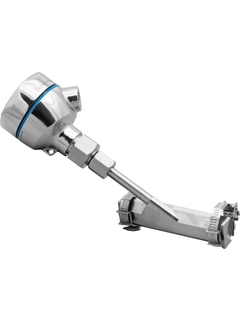

Version with stainless steel terminal head TA30R, 20° angle, DN25, 1 ", outside pipe ⌀ 33.7 mm

Cable probe non-invasive
  • F
  • L
  • E
  • X
©Endress+Hauser

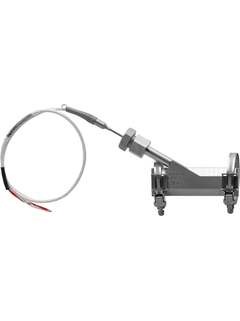

Version with cable probe TST310, 20° angle, DN25, 1 ", outside pipe ⌀ 33.7 mm

Non-invasive thermal coupling element for pipe
  • F
  • L
  • E
  • X
©Endress+Hauser

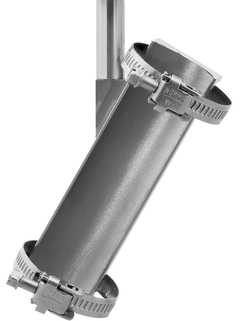

Thermal coupling element with advanced geometry and heat transfer material for optimized heat transfer; stainless steel clamps for easy installation

Non-invasive thermometer for energy monitoring
  • F
  • L
  • E
  • X
©Endress+Hauser

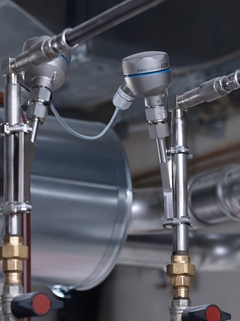

Ideal for energy monitoring

Version with aluminium terminal head TA30A, 20° angle, DN25, 1 ", outside pipe ⌀ 33.7 mm

Specs at a glance

  • Accuracy

    depending on application
    Class AA acc. to IEC 60751
    Class A acc. to IEC 60751
    Class B acc. to IEC 60751
    Class special or standard acc. to ASTM E230
    Class 1 or 2 acc. to IEC 60584-2

  • Response time

    depending on application

  • Operating temperature range

    -196 °C…400 °C (-320,8 °F...752 °F)

Field of application

The non-invasive thermometer iTHERM SurfaceLine TM611 is used across all industries to measure temperature without the risk of leakage and process disruption. The device is safe and easy to install and provides the same accuracy and response time as invasive temperature measurement. A specially designed thermal coupling element provides ideal thermal conductivity to the sensor and reduces ambient influences, resulting in superior measurement performance even compared to electronic compensation.

  • Can be used universally in all industries

  • Ideal for demanding process conditions such as high flow velocities, high process pressures, highly viscous or corrosive media, abrasion, pigging or small pipe diameters

  • Perfect for subsequent installation for measurements in existing facilities for energy and safety monitoring

Benefits

  • Measurement accuracy and response time comparable with invasive measurements

  • No process opening required, no leakage risk

  • Increased safety for personnel, plant and the environment

  • User-friendly from product selection to installation and maintenance

  • Significant cost savings: shorter development and project planning times, reduced expenses for installation, certification and inspections as well as no costs for thermowells, nozzles and flanges, weld seam inspections and pipe extensions.

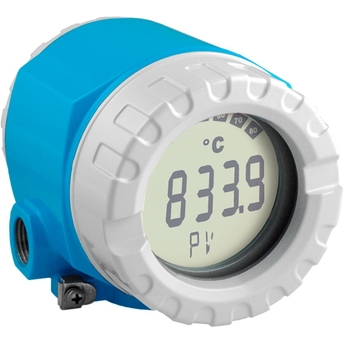

  • iTEMP temperature transmitter with all standard communication protocols and optional Bluetooth® connectivity

  • International certification: e.g. explosion protection according to ATEX, IECEx, CSA and NEPSI; functional safety (SIL)
