Specs at a glance
-
Accuracy
class A acc. to IEC 60751
class AA acc. to IEC 60751 -
Response time
depending on configuration
-
Max. process pressure (static)
at 20 °C: 400 bar (5.802 psi)
-
Operating temperature range
PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F) -
Max. immersion length on request
up to 30.000,00 mm (1.181,10'')
Field of application

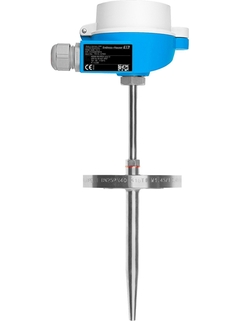

The robust thermometer is designed for use in demanding applications like gas or steam applications e.g. in the Chemical, Oil & Gas and Energy industry. Highest pressures as well as high temperature can be handled by the use of robust protection tubes and special process connections. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.
Universal range of application
Particularly suitable for steam and gas applications with high process pressures and temperatures
Measuring range: -200 to +600 °C (-328 to 1112 °F)
Static pressure range up to 400 bar (5800 psi)
Degree of protection: up to IP68
Benefits
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Extension neck to protect the head transmitter from overheating
Fast response time with reduced/tapered tip form
Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), non-sparking (Ex nA)
Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
Lean selection
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
52 documents
-
-
Technical Information (TI)
TI TR15, TC15
Modular thermometer with extension neck, barstock thermowell, available
with a flange or as a weld-in unitEN 26/04/202328/02/202205/08/201311/12/2012Language:
English
Version:
26/04/2023
File size:
1 MB
File name:
TI01100TEN_0423-00.pdf
-
-
-
Technical Information (TI)
Technical Information, TR15 Omnigrad M
Modular RTD assembly neck tube, barstock thermowell, available with a
flange or as a weld-in unitEN 01/07/200901/08/2002Language:
English
Version:
01/07/2009
File size:
1 MB
File name:
TI260ten_0709.pdf
-
-
-
Ex Safety Instruction (XA)
XA TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x
RTD/TC thermometers
ATEX/IECEx:
Ex ia IIC T6 Ga
Ex ia IIC T6 Ga/Gb
Ex ia IIIC Txxx °C Da
Ex ia IIIC Txxx °C DbEN 28/03/202320/12/202103/05/201628/11/201201/06/2009Language:
English
Version:
28/03/2023
File size:
450.8 KB
File name:
XA00072REN_1623-00.pdf
-
-
-
Ex Safety Instruction (XA)
XA TR1x, Tx88, TSx310, Tx6x, TC1x, TPx100, TM411, TR24
Thermometers and inserts
Ex ia IIC T1...T6 Ga
Ex ia IIIC T<sub>200</sub> 85 °C...T<sub>200
</sub> 450 °C DaEN 30/08/202315/05/202331/07/2020Language:
English
Version:
30/08/2023
File size:
474.5 KB
File name:
XA02109TEN_0323-00.pdf
-
-
-
Ex Safety Instruction (XA)
XA iTHERM TM211, TPx100, TSx310
RTD/TC inserts and cable thermometers
ATEX/IECEx:
Ex ia IIC T6 Ga
Ex ia IIC T6 Ga/Gb
Ex ia IIIC Txxx °C DaEN 30/03/202318/07/202210/07/201928/11/201628/11/2012Language:
English
Version:
30/03/2023
File size:
456.3 KB
File name:
XA00100REN_1823-00.pdf
-
-
-
Ex Safety Instruction (XA)
XA TRxx, TCxx
RTD/TC thermometers
Ga/Gb Ех ia IIC T6…T1 Х
Ех ia IIIC T85 °C…T450 °C Da/Db ХEN 17/07/202410/03/202002/11/2016Language:
English
Version:
17/07/2024
File size:
453.6 KB
File name:
XA01459TEN_0324-00.pdf
-
-
-
Ex Safety Instruction (XA)
XA TRxx, TCxx, TEC420, TS111, TM211, TM41x, TPx100, TSx310, TM1xx
RTD/TC thermometers
ATEX:
Ex nA IIC T6 Gc
Ex ec IIC Txxx°C Gc
Ex tc IIIC Txxx°C DcEN 20/11/202313/12/202214/03/202223/05/201904/08/2017Language:
English
Version:
20/11/2023
File size:
452.6 KB
File name:
XA00044REN_2023-00.pdf
-
-
-
Ex Safety Instruction (XA)
TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411, TM412
Thermometers and inserts
Ex nA IIC T6...T1 GcEN 31/07/2020Language:
English
Version:
31/07/2020
File size:
173.5 KB
File name:
XA02111TEN_0120.pdf
-
-
-
Special Documentation (SD)
Device viewer
Technical documentation in other languages
Language:
English
Version:
14/07/2021
File size:
478.5 KB
File name:
SD02429R09EN_0121.pdf
-
-
-
Fields of Activities (FA)
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
Language:
German
Version:
17/05/2023
File size:
17.9 MB
File name:
FA00006Tde_2223_online.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
further parts
Order code52028179 -
-
Display LC for TA20J
-
further parts
Order code60017971 -
-
Housing filter plastic F15, 3 pieces
-
further parts
Order code71043745 -
-
Connector 4p M20/M12 150mm
-
further parts
Order code71313382 -
-
Spare parts kit ring D21/di 10xgreen
-
further parts
Order code71367427 -
-
Fixing kit cpl.TMT8x/7x (european)
-
further parts
Order code71044061 -
-
Spare parts kit O-ring TA20R
-
further parts
Order code71586415 -
-
Insert TPR100
-
Sensoric
Drawing numberOrder codeATPR100- -
-
iTHERM Insert TS111
-
Sensoric
Drawing numberOrder codeATS111- -
-
Extension Neck for Thermowell
-
Assembly/armature
Drawing numberOrder codeETN15- -
-
iTHERM ModuLine TT151
-
Assembly/armature accessory
Drawing numberOrder codeFTT151- -
-
Thermowell TW15
-
Assembly/armature accessory
Drawing numberOrder codeFTW15- -
-
iTEMP TMT71, Transmitter 4-20mA
-
further parts
Order codeTMT71- -
-
iTEMP TMT72, Transmitter HART
-
further parts
Order codeTMT72- -
-
iTEMP TMT84, Transmitter PA
-
Electronic (sensor)
Drawing numberOrder codeBTMT84- -
-
iTEMP TMT85, Transmitter FF
-
Electronic (sensor)
Drawing numberOrder codeBTMT85- -
-
Display Unit Head Transmitter
-
Electronic (sensor)
Drawing numberOrder codeBTID10- -
-
Terminal Head TA20A
-
Housing/housing accessories
Drawing numberOrder codeDTA20A- -
-
Terminal Head TA20B
-
Housing/housing accessories
Drawing numberOrder codeDTA20B- -
-
Terminal Head TA21E
-
Housing/housing accessories
Drawing numberOrder codeDTA21E- -
-
Readwin 2000 Operation + Read. software
-
further parts
Order codeREADWIN- -
-
Commubox FXA195
-
further parts
Order codeFXA195- -
-
Terminal Head TA30A
-
Housing/housing accessories
Drawing numberOrder codeDTA30A- -
-
Terminal Head TA30D
-
Housing/housing accessories
Drawing numberOrder codeDTA30D- -
-
Terminal Head TA30P
-
Housing/housing accessories
Drawing numberOrder codeDTA30P- -
-
iTEMP TMT180, Head Transmitter Pt100
-
Electronic (sensor)
Drawing numberOrder codeBTMT180- -
-
iTEMP TMT181, Head Transmitter PCP
-
Electronic (sensor)
Drawing numberOrder codeBTMT181- -
-
RTD Thermometer TR15
-
further parts
Order codeTR15- -
-
iTEMP TMT182, Head Transmitter HART
-
Electronic (sensor)
Drawing numberOrder codeBTMT182- -
-
iTEMP TMT82, Transmitter HART
-
Electronic (sensor)
Drawing numberOrder codeBTMT82- -
-
Spare RFID TAG
-
further parts
Order codeXPRFID- -
-
Thermo-conductive paste FDA-conform 30g
Order code71249291 -
Thermoconductive Paste HSC 340, 100g
Order code71312729 -
Term.block DIN B (42mm) 3 term. 5 pc
Drawing numberOrder codeC71111513 -
Term.block DIN B (42mm) 4 term. 5 pc
Drawing numberOrder codeC71111514 -
Term.block DIN B (42mm) 6 term. 5 pc
Drawing numberOrder codeC71111515 -
Welding Socket TA115
Order codeTA115- -
Configuration Kit TXU10
Order codeTXU10- -
