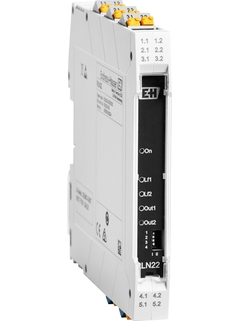

RLN22 1- or 2-channel, 24 V DC, isolating amplifier with relay signal output for systems up to SIL 2

RLN22 NAMUR isolating amplifier

NAMUR isolating amplifier, 1/2-channel with 24 V DC and NAMUR or switching contact input as well as relay output, optionally with SIL and Ex

RLN22
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
RLN22 1- or 2-channel, 24 V DC, isolating amplifier with relay signal output for systems up to SIL 2
  • F
  • L
  • E
  • X
©Endress+Hauser

RLN22 isolating amplifier for safe and reliable switching operations

The RN Series interface offering including the RLN22 isolating amplifier
  • F
  • L
  • E
  • X
©Endress+Hauser

The RN Series interface devices including the RLN22 isolating amplifier

RN Series interfaces installed in a control cabinet
  • F
  • L
  • E
  • X
©Endress+Hauser

The RN Series interface modules with RLN22 isolating amplifier being commissioned

RLN22 isolating amplifier for safe and reliable switching operations

Specs at a glance

  • Input

    NAMUR
    blocking: < 1,2 mA
    conducting: > 2,1 mA

  • Output

    relay contact

  • Power Supply

    24 V DC

Field of application

The RLN22 is a compact 1- or 2-channel, 24 VDC isolating amplifier with relay signal output. It is designed to safely operate e.g. proximity sensors or point level switches such as the Liquiphant FTL51B (NAMUR) as per IEC 60947-5-6.
The DC interface monitors line faults such as breaks or short-circuits of sensors or mechanical switching contacts. The device is suited for use in hazardous areas and safety instrumented systems up to SIL 2 in accordance with IEC 61508.

  • Isolating amplifier for the transmission of binary switching signals

  • Input for proximity sensors, open contacts or contacts with resistive coupling elements

  • Galvanic isolation (3-way)

  • Line fault monitoring of input circuits or mechanical switching contacts

  • Group error message via DIN rail bus connector

  • Output-side relay contacts, direction of action (operating or quiescent current behavior) via DIP switch selection

  • Ambient temperature range: –40 to 60 °C (–40 to 140 °F)

Benefits

  • Safe and reliable switching operations: trust your critical applications

  • Compact housing: up to 2 channels on 12.5 mm (0.49 in) for efficient use of space in control cabinets

  • Installation in hazardous areas; Ex approval for Ex zone 2

  • Up to SIL 2 in accordance with IEC 61508

  • Quick and easy wiring and commissioning: plug-in terminals, power supply and group error message module via DIN rail bus connector
