Liquistation CSF48 automatically takes water samples for monitoring of wastewater treatment plants, sewage networks, surface water and industrial processes.
©Endress+Hauser

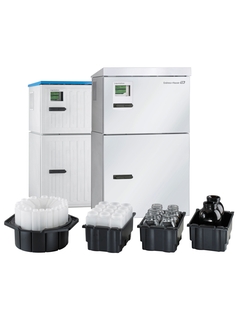

The stationary automatic water sampler is available with plastic and stainless steel housings and various sample bottle configurations.
©Endress+Hauser
Heartbeat Technology allows status-oriented maintenance of the automatic water sampler.
©Endress+Hauser
Liquistation CSF48 with vacuum pump. It is used for most standard sampling applications as it offers accurate, reproducible sample volumes and a high sample transport velocity.
©Endress+Hauser
Liquistation CSF48 with peristaltic pump. This version is recommended when cyclic rinsing of the suction line or variable sample volumes are desired.
©Endress+Hauser

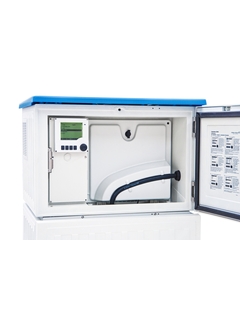

Liquistation CSF48 without pump. It is used together with the CSA420 assembly for automatic sampling from pressurized pipes or tanks. With this system no waste drainage is necessary.
Specs at a glance
Suction height
6 m (19.69 ft) suction height 8 m (26.25 ft) suction height
Cabinet
Plastic PS Plastic ASA+PC Stainless Steel V2A Stainless Steel V4A
Process temperature
Sample temperature: 2 to 50 °C (36 to 122 °F)
Process pressure
Max. 0.8 bar (Max. 11.6 psi)
Field of application
Sampling made safe and easy. The Liquistation CSF48 automatic water sampler complies with worldwide water regulation, features a fail-safe cooling system and vandalism-proof housing guaranteeing outstanding safety for your samples. Easy, menu-guided sample programming and tool-free maintenance save you time in your everyday tasks. Liquistation can be upgraded to a complete measuring station for modern environmental monitoring at any time giving you the flexibility to address future demands.
Liquistation CSF48 is suitable for the following applications:
Municipal and industrial wastewater treatment plants: - Self monitoring - Process monitoring - Monitoring of indirect dischargers - Monitoring of sewage system
Authorities and water management authorities: - Water protection and water quality - Monitoring of direct and indirect dischargers
Benefits
Automatic water sampling in full compliance with all relevant national and international standards such as ISO 5667
100% adaptable to any monitoring task from time- or flow-controlled sampling to event-controlled sampling and multiple sampling routines
By connecting up to four Memosens sensors, the sampler can be upgraded to a fully-fledged measuring station (e.g. for event monitoring)
Offers all the benefits of the Liquiline platform, such as uniform operation of all devices, easy expandability and reduced need for spare part stock thanks to standardized components
Fully integrable in any process control system thanks to digital fieldbus communication and remote access via web server
Quick cleaning and maintenance thanks to easy, tool-free removal of wetted parts. With our Heartbeat Technology you always know the status of your device and therefore cost and resources savings are possible.
Latest and environmentally friendly cooling technology without hydrofluorocarbons (HFC) for optimal processing of your samples
Extended selection
High-end products
Highly functional and convenient
Technical excellence
Simplicity
©Endress+Hauser
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Loading alternative products
Predecessor
RPS10
RPS11
ASP-Station 2000, vacuum system RPS20
Success stories
Monitoring biological parameters in wastewater
Examination of wastewater, using the Liquistation CSF48 and the Liquiport CSP48 mobile, can provide valuable information about the occurrence of Covid 19 infections in a specific area
Read the full story
An automated system for pH measurements at AVR
AVR Waste in Botlek, Rotterdam, processes up to 1.7 million tons of residual waste per year. Discover how they optimized their pH measurement thanks to Endress+Hauser
Read the full story
Application
Communal and industrial wastewater treatment plants Laboratories and water management offices Monitoring of liquid media in industrial processes
Dosing system
Vacuum pump system Peristaltic pump system Armature
Suction height
6 m (19.69 ft) suction height 8 m (26.25 ft) suction height
Cabinet
Plastic PS Plastic ASA+PC Stainless Steel V2A Stainless Steel V4A
Process temperature
Sample temperature: 2 to 50 °C (36 to 122 °F)
Cooling
Active, dynamic cooling unit
Process pressure
Max. 0.8 bar (Max. 11.6 psi)
Heating
Evaporator and defrosting unit mounted in compact housing
Input
Analogue: 2, galvanically isolated Binary: 2, galvanically isolated Optional: 1 to 4 digital sensors
Output / communication
Binary: 2, galvanically isolated Optional 2 to 6 relay, 2 to 6 current output
Interface
CDI Optional: Ethernet, PROFIBUS DP, Modbus RS485, Modbus TCP
Data logger
All events and data Sampling statistics
Power supply
Depending on version: 100 to 120/200 to 240 V AC ±10 %, 50/60 Hz 24 V DC +15/‐9 %
Dimension
1.258 x 753 x 625 mm (h x w x d) 49.5 x 29.7 x 24.6 inch (h x w x d)
Accessories
Sampling from pressurized systems Dosing system Housing equipment Electrical equipment
Options
Connection to digital sensors with Memosens protocol, Fieldbuscommunication
Most downloaded
Liquistation CSF48
English version - 10/2022
Automatic stationary sampler for liquid media; integrated controller
with up to four measuring channels and optional digital Memosen
