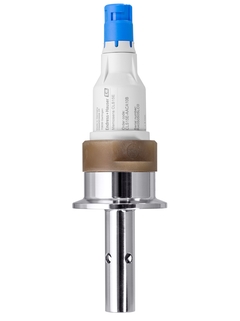

Memosens CLS15E - Digital contacting conductivity sensor for pure and ultrapure water

Digital conductivity sensor
Memosens CLS15E

Memosens 2.0 contacting conductivity sensor for standard applications in pure and ultrapure water

CLS15E
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Memosens CLS15E - Digital contacting conductivity sensor for pure and ultrapure water
  • F
  • L
  • E
  • X
©Endress+Hauser

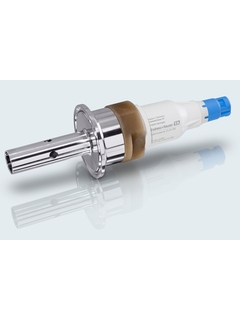

Memosens CLS15E - Digital conductivity sensor for pure water and ultrapure water applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measuring range

    k=0,01: 0.04 to 20 µS/cm
    k=0,1: 0.10 to 200 µS/cm

  • Process temperature

    Threaded with fixed cable:
    -20 to 100 °C (-4 to 212 °F)
    Threaded with plug-in head:
    -20 to 120 °C (-4 to 248 °F)
    Sterilization: max. 140 °C (284 °F) for 30 minutes

  • Process pressure

    13 bar at 20 °C (188 psi at 68 °F) absolute
    1 bar at 120 °C (14 psi at 248 °F) absolute

Field of application

Memosens CLS15E is perfectly suited for conductivity measurement in applications with low measuring ranges such as boiler feedwater and chip cleaning. The contacting conductivity sensor performs reliably and accurately even in hazardous areas. CLS15E features Memosens 2.0 digital technology, offering extended storage of calibration, adjustment and process data. It facilitates predictive maintenance and provides the perfect basis for IIoT services.

Memosens CLS15E measures conductivity in pure and ultrapure water applications for the monitoring and control of:

  • Boiler feedwater

  • Ion exchangers

  • Reverse osmosis

  • Cooling water

  • Distillation

  • Chip cleaning

The digital sensor can be used in power plants for:

  • Degassed conductivity

  • pH measurement with differential conductivity

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Benefits

  • Designed for low maintenance and a long operating life, the sensor offers best value for money.

  • The sensor is sterilizable and autoclavable, allowing for installation in sterile plants.

  • Thanks to its electrode geometry, Memosens CLS15E provides reliable and accurate measured values at low conductivities.

  • A quality certificate stating the individual cell constant enables perfect adjustment of the measuring point.

  • IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

  • Non-contact inductive signal transmission ensures maximum process safety.

Videos

  • The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
