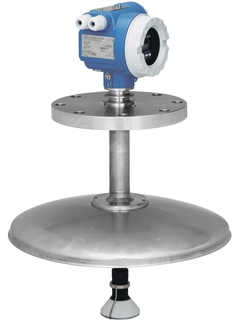

Name: Micropilot S FMR533
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Successor

F

L

E

X

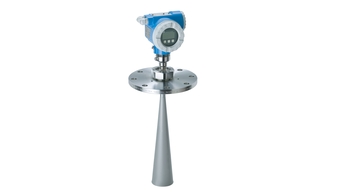

Micropilot S FMR540

Horn antenna and parabolic antenna for custody transfer applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

Characteristic / Application
Supply / Communication

4-wire (HART)
Frequency

C-band (~6 GHz)
Accuracy

+/- 1 mm, custody transfer
Ambient temperature

Standard:
-40 °C ... 80 °C
(-40 °F ... 176 °F)
For calibration to regulatory standards:
-25 °C ... 60 °C
(-13 °F ... 131 °F)
Process temperature

-40 °C ... 200 °C
(-40 °F ... 392 °F)
Process pressure / max. overpressure limit

Vacuum ... 16 bar
(Vacuum ... 232 psi)
Main wetted parts

316L + PTFE
Process connection

DN150 ... DN250 / 6" ... 10"
Max. measurement distance

Max. measurement distance
Communication

4 ... 20 mA HART
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, NEPSI
Safety approvals

Overfill prevention WHG
Application limits

Application limits

Filter

Search downloads by serial number

Configure to download the CAD drawings of this product

Configure

58 documents

Technical Information (TI)

Micropilot S FMR530 Technical Information

Technical Information (TI)

English version - 12/2016

New version available in English

Level-Radar
Continuous level transmitter for continuous and non-contact precision
level measurement. For custody transfer andinventory control
applications with NMi- and PTB-approvals.

Select other languages, versions and see details Hide selection and details

	EN
09/12/2016
10/05/2016
07/02/2014
30/10/2010
23/07/2009

Language:	English
Version:	09/12/2016
File size:	954.1 KB
File name:	TI00344FEN_1616.pdf

Share
- Copy Link
- Send Mail
Download

Technical Information (TI)

Tankvision NXA820, NXA821, NXA822

Technical Information (TI)

English version - 04/2008

New version available in English

Inventory Management System with completely integrated software for
operation via standard web browser

Select other languages, versions and see details Hide selection and details

	EN
03/04/2008

Language:	English
Version:	03/04/2008
File size:	2.7 MB
File name:	TI419FEN_05.08.pdf

Share
- Copy Link
- Send Mail
Download

Technical Information (TI)

Technical Information Micropilot S FMR533 Level-Radar

Technical Information (TI)

English version - 12/2016

New version available in English

Level transmitter for continuous and non-contact
precision level measurement
For custody transfer and inventory control
applications with NMi- and PTB-approvals.

Select other languages, versions and see details Hide selection and details

	EN
09/12/2016
10/05/2016
05/02/2015
07/02/2014

Language:	English
Version:	09/12/2016
File size:	1 MB
File name:	TI01123FEN_0416.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Micropilot S FMR530, FMR531, FMR532, FMR533 HART Description of Instrument Functions

Operating Instruction (BA)

English version - 02/2014

New version available in English

Smart Transmitter for continuous and non-contact precision level
measurement
For custody transfer and inventory control
applications with NMi- and PTB-approvals

Select other languages, versions and see details Hide selection and details

	EN
07/02/2014
23/07/2009
28/06/2006
01/04/2004

Language:	English
Version:	07/02/2014
File size:	2.9 MB
File name:	BA00217FEN_1313.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Micropilot S FMR533 HART Operating Instructions

Operating Instruction (BA)

English version - 02/2014

New version available in English

Level-Radar
Continuous level transmitter for continuous and non-contact precision
level measurement. For custody transfer andinventory control
applications with NMi- and PTB-approvals.

Select other languages, versions and see details Hide selection and details

	EN
07/02/2014
30/11/2010
23/07/2009
28/06/2006
06/04/2004

Language:	English
Version:	07/02/2014
File size:	4.4 MB
File name:	BA00209FEN_1413.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Micropilot S FMR533 HART Brief Operating Instructions

Short Instruction (KA)

English version - 02/2014

New version available in English

Level-Radar
Continuous level transmitter for continuous and non-contact precision
level measurement. For custody transfer andinventory control
applications with NMi- and PTB-approvals.

Select other languages, versions and see details Hide selection and details

	EN
07/02/2014
30/11/2009

Language:	English
Version:	07/02/2014
File size:	1.6 MB
File name:	KA01058FEN_1313.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Exchange of parabolic antenna on Micropilot S FMR533

Short Instruction (KA)

English version - 04/2012

New version available in English

Exchange of parabolic antenna on Micropilot S FMR533

Select other languages, versions and see details Hide selection and details

	EN
24/04/2012

Language:	English
Version:	24/04/2012
File size:	639.5 KB
File name:	KA00565FA2_0502.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Bedienungsanleitung/ Operating Instuction Micropilot S Kurzanleitung.

Short Instruction (KA)

English version - 12/2000

New version available in English

Bedienungsanleitung/ Operating Instuction Micropilot S Kurzanleitung.

Select other languages, versions and see details Hide selection and details

	EN
01/12/2000

Language:	English
Version:	01/12/2000
File size:	716.8 KB
File name:	KA161FA2.PDF

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Weather protection cover Mounting Instruction

Short Instruction (KA)

English version - 06/2007

New version available in English

Weather protection cover for devices with F12/T12/F23 housing.

Select other languages, versions and see details Hide selection and details

	EN
27/06/2007
31/05/2007

Language:	English
Version:	27/06/2007
File size:	235.5 KB
File name:	KA137Fa6_0607.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Installation instruction - electronics, terminal module

Short Instruction (KA)

English version - 05/2015

New version available in English

Mircropilot S

Select other languages, versions and see details Hide selection and details

	EN
13/05/2015

Language:	English
Version:	13/05/2015
File size:	1.1 MB
File name:	KA560F-a2.pdf

Share
- Copy Link
- Send Mail
Download

Loading more results

Filter

Search spare parts by number in drawing

60 spare parts & accessories

Cover T3/T12 Alu, coated, gasket

Cover

Drawing number

Order code

25

518710-0020
Cover F12/T12 Alu, window, gasket

Cover

Drawing number

Order code

20

52005936
Hood housing T12

Cover

Drawing number

Order code

11

52005643
Terminal module 5-pole, FMR53x

Terminal module

Drawing number

Order code

35

52005586
Terminal module 5-pole, Ex i, FMR53x/540

Terminal module

Drawing number

Order code

35

71020581
O-ring 113.9x3.63 EPDM, 5 pieces

further parts

Order code

71092209
Display VU331, version 2

Display

Drawing number

Order code

40

52026443
Sealing kit FMR5xx

Sealing

Drawing number

Order code

65

52005628
HF Coax cable 6GHz

further parts

Order code

517140-0000
Tool for unplugging the antenna cable

further parts

Order code

52007646
HF-test cable 6GHz + resistor

further parts

Order code

52028063
HF-test cable 6GHz

further parts

Order code

71006590
ToF Adapter FXA291

further parts

Order code

71007843

Micropilot S FMR533

Successor

Micropilot S FMR540

Characteristic / Application

Supply / Communication

Frequency

Accuracy

Ambient temperature

Process temperature

Process pressure / max. overpressure limit

Main wetted parts

Process connection

Max. measurement distance

Communication

Certificates / Approvals

Safety approvals

Application limits

Back

Micropilot S FMR530 Technical Information

Tankvision NXA820, NXA821, NXA822

Technical Information Micropilot S FMR533 Level-Radar

Micropilot S FMR530, FMR531, FMR532, FMR533 HART Description of Instrument Functions

Micropilot S FMR533 HART Operating Instructions

Micropilot S FMR533 HART Brief Operating Instructions

Exchange of parabolic antenna on Micropilot S FMR533

Bedienungsanleitung/ Operating Instuction Micropilot S Kurzanleitung.

Weather protection cover Mounting Instruction

Installation instruction - electronics, terminal module

Back

Cover T3/T12 Alu, coated, gasket

Cover F12/T12 Alu, window, gasket

Hood housing T12

Terminal module 5-pole, FMR53x

Terminal module 5-pole, Ex i, FMR53x/540

O-ring 113.9x3.63 EPDM, 5 pieces

Display VU331, version 2

Sealing kit FMR5xx

HF Coax cable 6GHz

Tool for unplugging the antenna cable

HF-test cable 6GHz + resistor

HF-test cable 6GHz

ToF Adapter FXA291
